Mesh Building Wrap Screen at Loseley House, Guildford

Mesh Building Wrap Screen Designing for Reality, Not Drawings

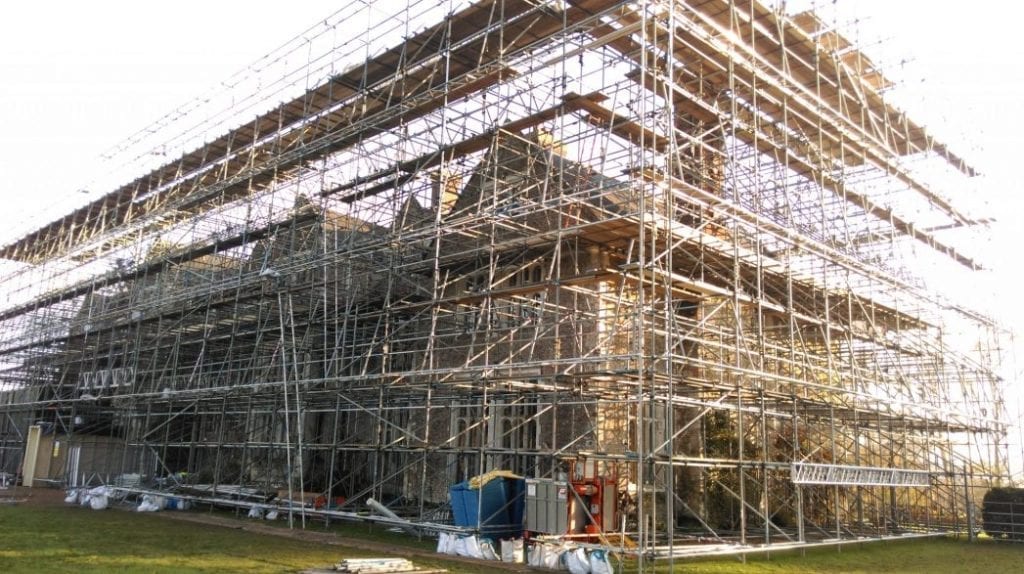

One of the biggest challenges with large mesh building wraps is that scaffolding rarely mirrors the building perfectly. It exists for safety and access—not aesthetics. Tubes, lifts, braces, platforms, and projections all disrupt the clean lines of a façade.

At Loseley House, this complexity was multiplied.

The Mesh Building Wrap Screen had to:

• Align visually with the real architectural features of the house

• Match door and window positions precisely

• Allow continued access through the main front door

• Incorporate cut-outs for a site office, materials lift, and two skips

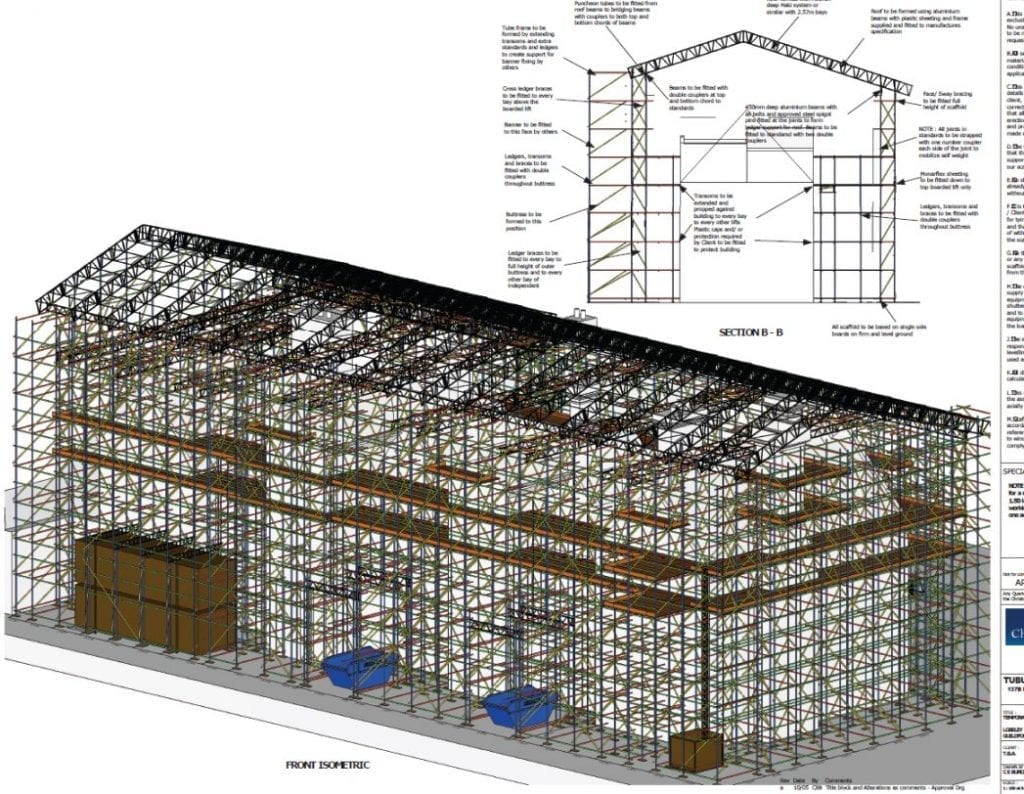

• Fit around a prefabricated scaffolding structure that was larger than the building itself

Each opening had to be pre-planned, pre-cut, and positioned with absolute accuracy. Once the mesh was printed and welded, there was no margin for improvisation.

The Importance of Early Collaboration

Projects of this nature rely heavily on communication. While we worked closely with the client and the site team, one key lesson from this installation was the importance of keeping the scaffolding designer involved from the very beginning.

Partway through the artwork stage, the scaffolding contractor requested additional fixing points to meet structural requirements. While entirely understandable from a safety perspective, this introduced unexpected changes and additional costs for the client.

It was a reminder that a Mesh Building Wrap Screen is not just a print product—it is part of a structural system. Early coordination between printers, designers, scaffolders, and clients can prevent late-stage complications.

Printing at Scale: Turning Data into Fabric with Mesh Building Wrap Screen

The digital print itself was produced on PVC mesh using a 5-metre-wide HP XL Jet 1500. At this scale, maintaining consistent colour, sharpness, and alignment across multiple welded sections is a technical challenge in its own right.

Once printed, the mesh panels were welded together using a high-frequency PVC welder to create a single continuous piece. This process ensures strength, durability, and clean seams—essential when the final product weighs hundreds of kilograms and will be under constant tension.

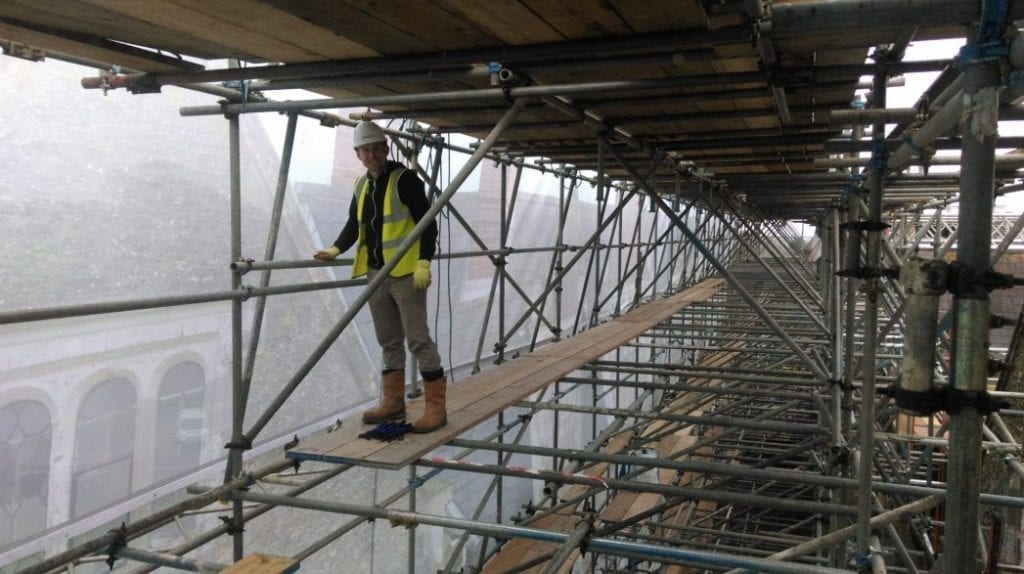

Mesh was chosen not just for its visual properties, but also for its practical performance. The material allows wind to pass through, reducing load on the scaffolding while remaining strong enough to maintain its shape and image integrity.

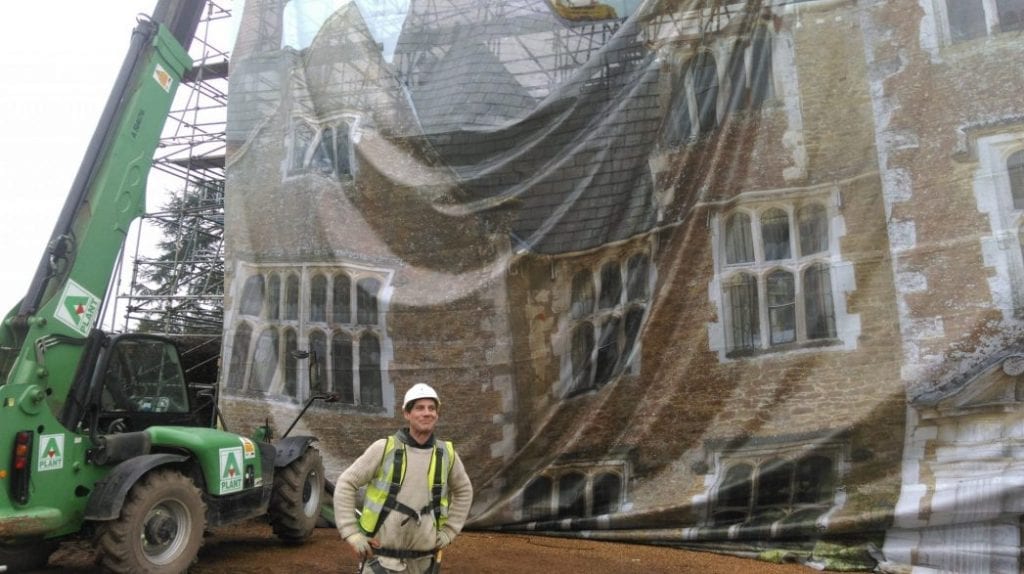

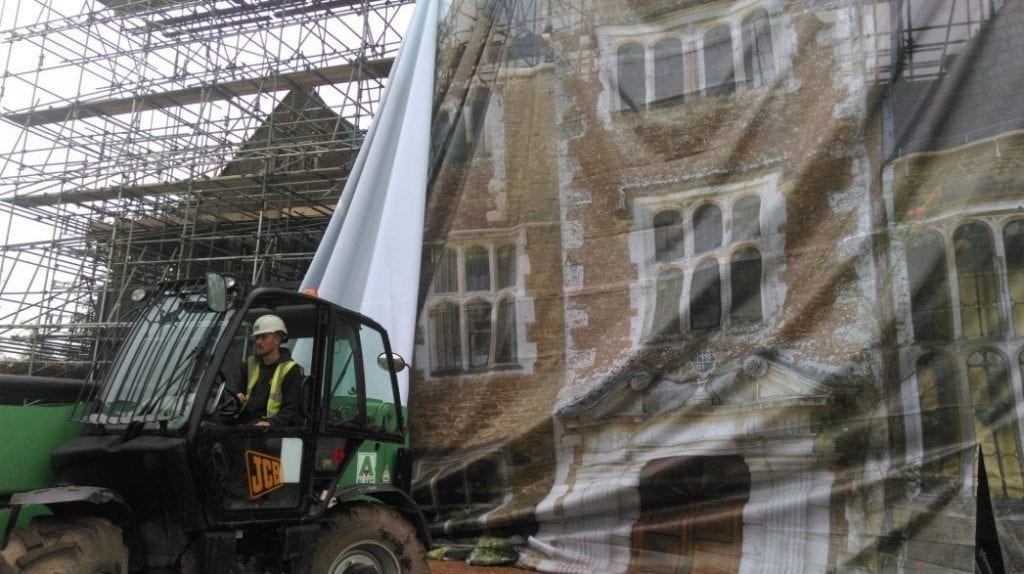

Installation: A Job for Many Hands

Installing a Mesh Building Wrap Screen of this size was never going to be simple.

The installation was carried out by RBS Scaffolding under the supervision of Justin Murray. Due to the weight and scale of the wrap, it took a team of 15 people to lift, position, and secure it safely into place.

This wasn’t a quick fix or a routine banner install. Every movement had to be controlled. Every fixing point had to be checked. The alignment of the printed image—particularly around the front door—was critical.

From the ground, the wrap needed to feel calm and convincing. From the scaffold, it needed to be secure and compliant.

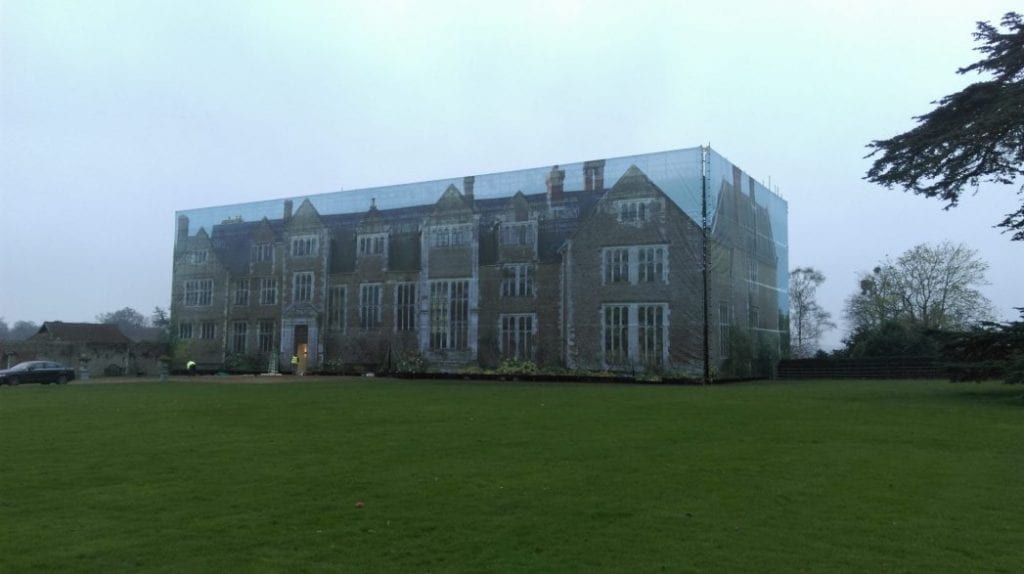

The Result: Subtlety Done Right Mesh Building Wrap Screen

Once installed, the Mesh Building Wrap Screen achieved exactly what it set out to do.

From a distance, the printed façade blended seamlessly into the landscape. Wedding guests arriving at Loseley were greeted not by construction works, but by a familiar and reassuring view of the house they had come to celebrate in.

For couples considering Loseley as a venue, the wrap ensured they could still appreciate the character and beauty of the house, even while essential renovation works were underway.

This was not about drawing attention to the print. It was about making people forget it was there at all.

Why Mesh Building Wrap Screens Matter in Heritage Settings

This project highlights a lesser-known but increasingly important use of mesh building wraps: heritage preservation during construction.

In sensitive locations—historic buildings, visitor attractions, event venues—the visual impact of scaffolding can be as disruptive as the work itself. A well-designed Mesh Building Wrap Screen can:

• Preserve the visual identity of a building

• Reduce the negative impact of long-term renovations

• Support ongoing commercial or public use

• Improve visitor experience during construction

When handled carefully, it becomes part of the solution rather than a distraction.

A Project We’re Proud Of

The Loseley House installation was demanding, complex, and at times challenging—but it was also deeply rewarding. Projects like this remind us that large-format print is not just about size or technology. It’s about understanding place, purpose, and people.

At Project Print Management, we’re proud to work on projects that require both technical precision and creative sensitivity.

Considering a Mesh Building Wrap Screen?

Whether you’re managing a heritage site, commercial building, or large-scale renovation, a Mesh Building Wrap Screen can offer far more than simple coverage.

We provide:

• Consultation and feasibility advice

• Artwork support and image sourcing

• Large-format digital printing

• Welding and finishing in-house

• Coordination with scaffolding contractors

• Supervised installation nationwide

If you’re planning a complex project and want a solution that respects both structure and setting, we’d be happy to talk.
